The Visual Otoscope HD Endoscope is a cutting-edge medical device designed for precise ear examinations and cleaning procedures. Combining high-definition imaging with professional-grade optics, this system provides crystal-clear visualization of the ear canal for accurate diagnostics and safe wax removal. Ideal for ENT specialists, pediatricians, veterinarians, and home users, our otoscope delivers hospital-quality performance in a user-friendly package.
Product Model: X1-HD2401
Cold Light Source Main Unit Technical Parameters
|
|
Product Introduction |
| A high-brightness lighting device composed of high-power LEDs and their components. | |
| Features | |
| Low Power Consumption | Total Power: 120W |
| Excludes Infrared and Ultraviolet Radiation | |
| Technical Parameters | |
| Rated Input Power | 100W |
| Light Output | >2,000,000LX |
| Lamp Rated Power | 60W |
| Color Temperature | 5000K-6500K |
| Lamp Lifespan | ≥40,000h |
_1_20251218184946A397.jpg)

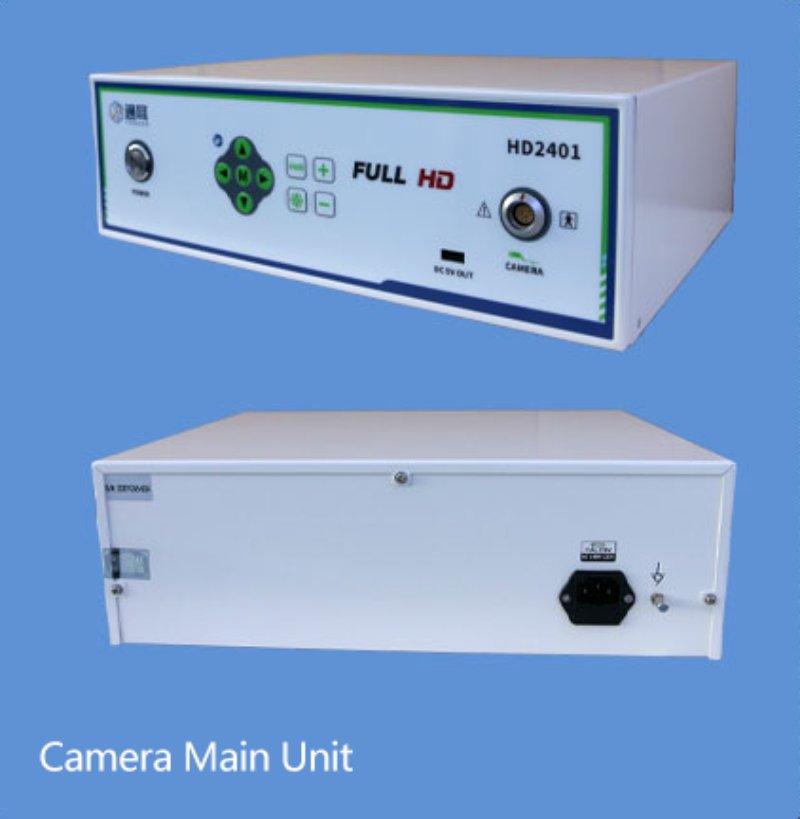

High-Definition Medical Endoscopic Camera System Technical Specifications
| Image Sensor | SONY SUPER HAD CCD |
|
| Pixels | PAL795H596V | |
| Scanning System | PAL752lines, 50field/sec | |
| Synchronization System | Internal Synchronization | |
| Horizontal Resolution | 700 lines | |
| Video Output |
1.0Vp-p75Ohm 1.0Vp-p70Ohm (1.0Vp-p represents the amplitude of the CVBS signal, 75 Ohm represents the impedance of the video signal line.) |
|
| SNR | >52dB | |
| Gamma Correction | 0.45 | |
| White Balance | Auto lock | |
| White Balance Range | 2200-1500K | |
| Electronic Shutter | 1/50-1/100000 second continuous operation | |
| Minimum Illumination | 0.5Lu*F2.2 |
_2_20251218190809A398.jpg)
_3_20251218191013A399.jpg)
Key Applications
Medical Clinics: Professional ear examinations and treatment procedures
Pediatric Care: Gentle inspection for children's sensitive ear canals
Veterinary Use: Safe animal ear inspections and cleaning
Home Healthcare: Personal ear hygiene maintenance
Wellness Centers: Professional ear cleaning services
Competitive Advantages
✅ Ultra-HD Imaging

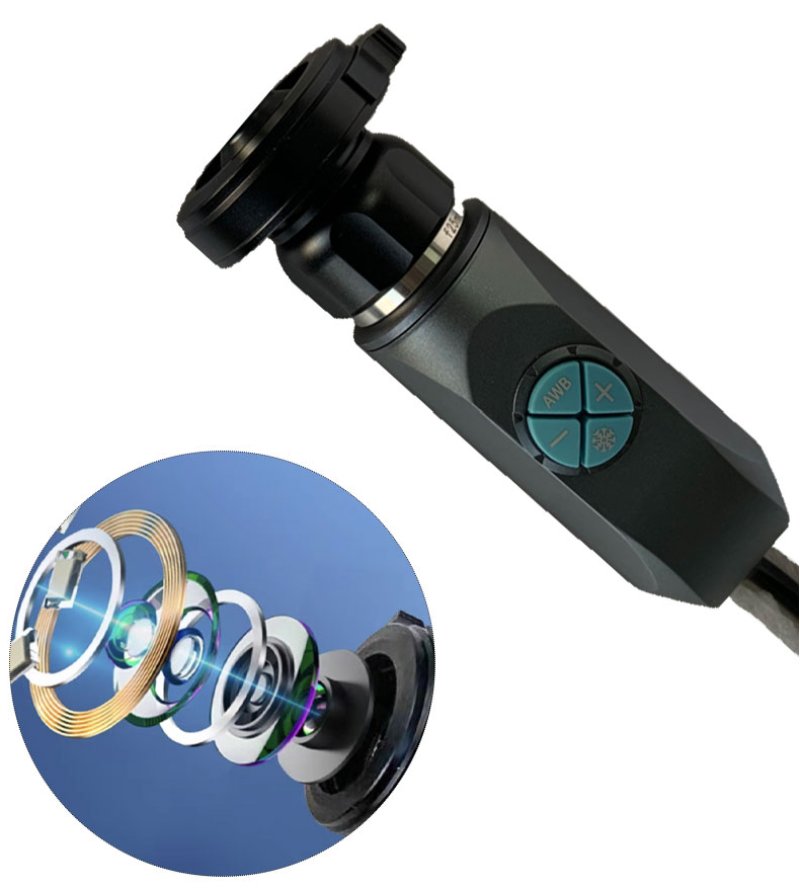

1080p Sony CMOS sensor with true-to-life color reproduction
2.7mm/4.0mm medical-grade endoscope options
6-LED adjustable cold light source (no heat discomfort)

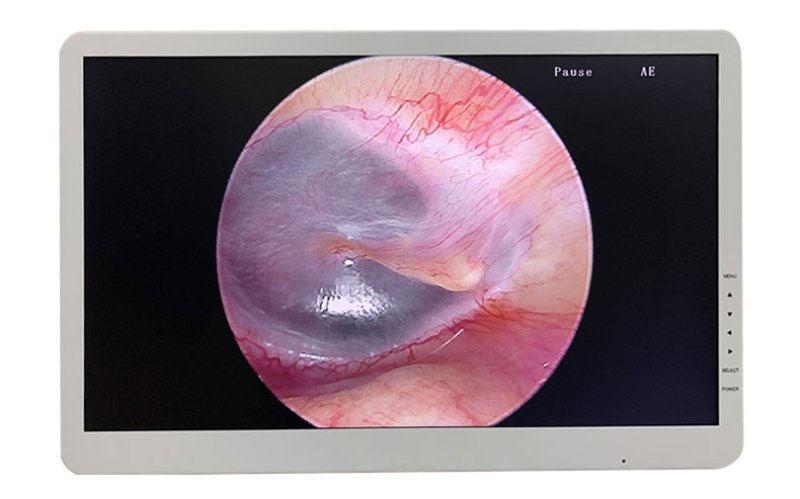

24-inch medical high-definition screen, 1920*1080, HDMI transmission interface
_7_20251218191722A403.jpg)
_11_20251218191743A404.jpg)
✅ Ergonomic Design
Lightweight handheld unit (only 180g)
4.3" rotatable IPS touchscreen (up to 270° rotation)

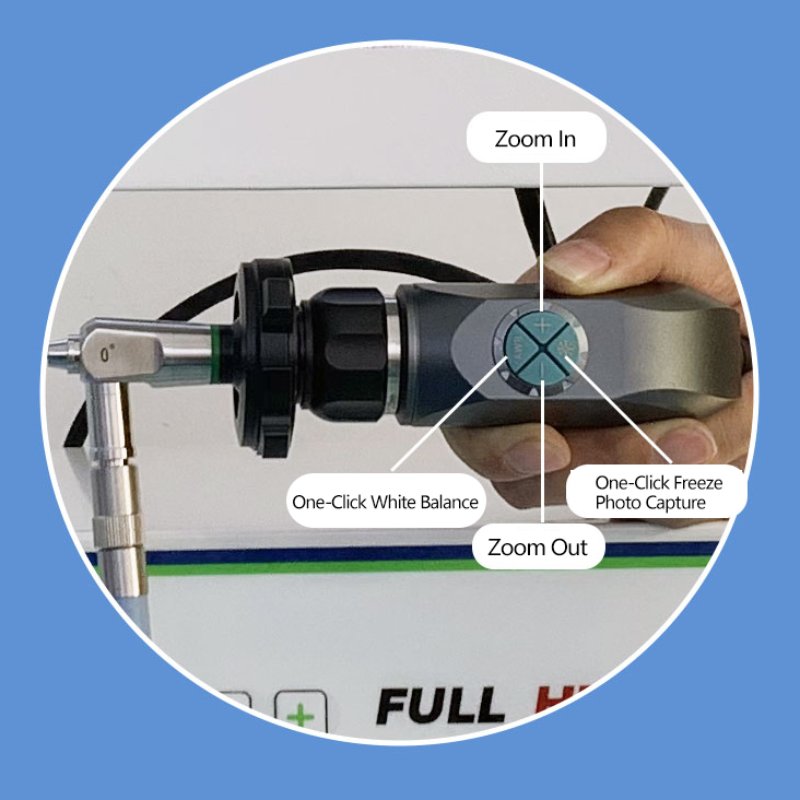

Single-button operation for ease of use
_4_20251218191238A400.jpg)
✅ Professional Features
Image freeze & zoom function
Built-in 32GB storage (stores up to 50,000 images)
Rechargeable battery (5+ hours continuous use)
_8_20251218191908A405.jpg)
✅ Safety Certified
Medical-grade materials (hypoallergenic)
CE and ISO 13485 certified
IP54 water-resistant rating
_9_20251218192010A406.jpg)
_10_20251218192034A407.jpg)

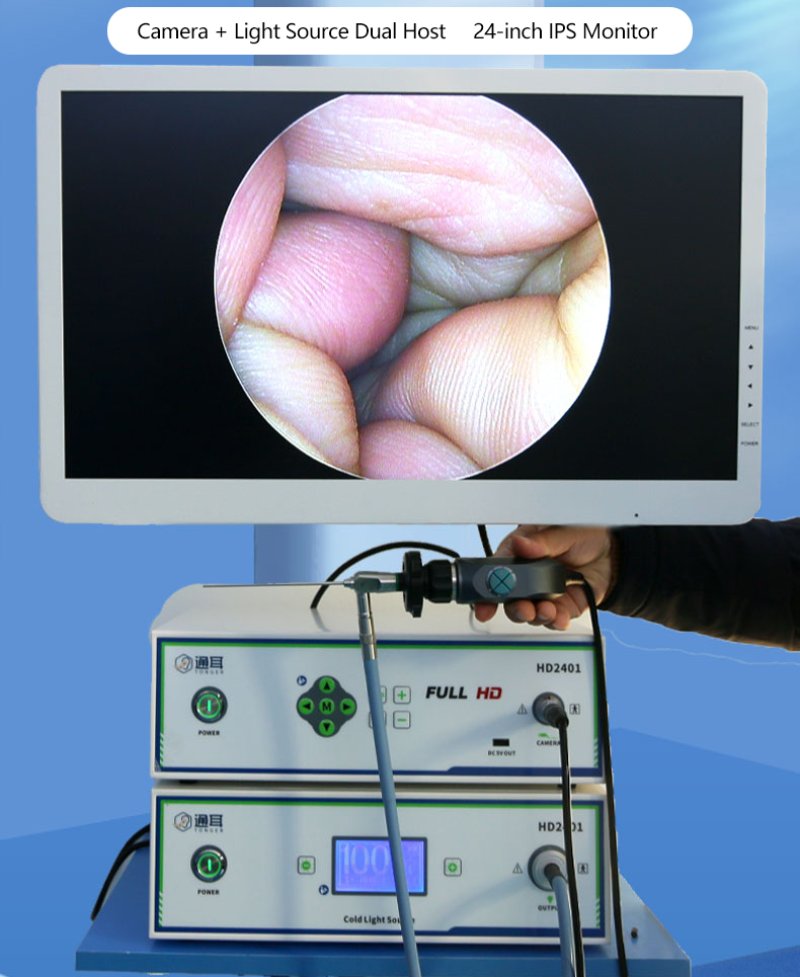

X1-HD2401 High-Definition Dual-Host Visual Ear Cleaning Instrument
_20251218182828A396.jpg)

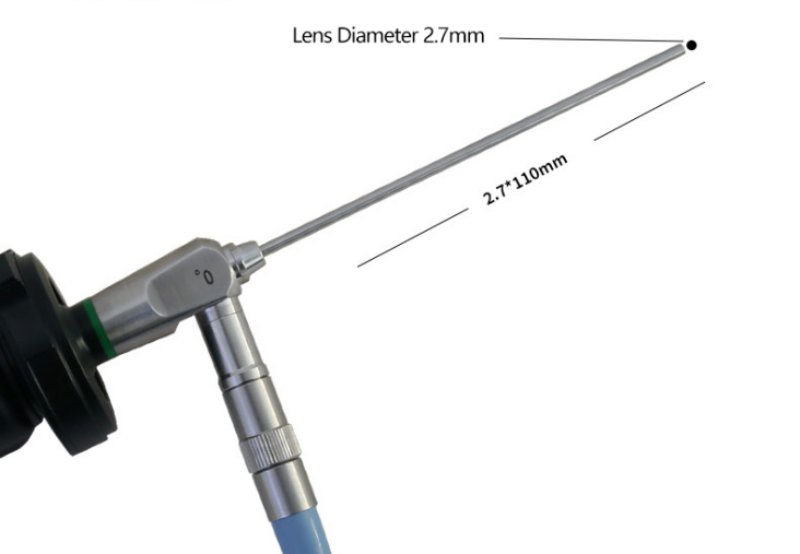

Multi-model compatible medical endoscopes - Dedicated for ENT examinations
_5_20251218191403A401.jpg)

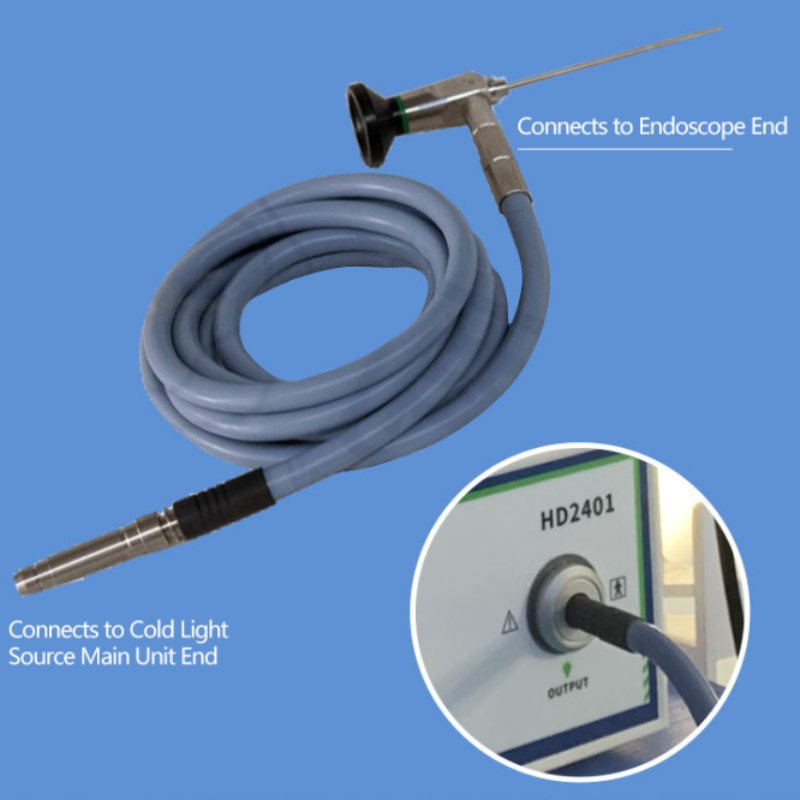

High-Quality Cold Light Source Beam Guide - 2.5 meters, Plug and Play
_6_20251218191508A402.jpg)
Frequently Asked Questions
Q: Is this suitable for home use?
A: Absolutely! Our visual otoscope is designed for both professional and personal use with simple one-touch operation.
Q: How does it compare to traditional otoscopes?
A: Unlike conventional devices, our HD endoscope provides magnified, illuminated real-time video of the ear canal interior with recording capability.
Q: What's included in the package?
A: Each unit comes with the main device, 2.7mm endoscope, USB-C charging cable, cleaning brush, and storage case.
Q: Can I use it on pets?
A: Yes, the gentle LED lighting and small diameter endoscope make it perfect for veterinary use.
Q: What's the warranty period?
A: We offer a 2-year warranty with lifetime technical support.
Why Choose Our Visual Otoscope?
Manufactured by YaGao Health Technology, a trusted medical device producer since 2020, our HD endoscope combines clinical precision with consumer-friendly operation. With exports to 30+ countries and 98% customer satisfaction, we stand behind our products with comprehensive support.
We offer two options: the Otoscope-Type Cleaning Device and the Cold Light Source Visual Ear Cleaning Device, combining clinical precision with ease of use. Click here to learn about the differences between the two, or contact us and we will help you choose the right product and provide you with a suitable quote.
