Aluminum plate-fin heat exchangers are the unsung heroes of modern thermal management, prized for their compact size and exceptional efficiency.But what truly defines their performance and structural integrity? The answer lies in the vacuum brazing process.
The Core Principle: Why Vacuum Matters
By utilizing the melting point differential between the Al-Si filler metal and the base aluminum alloy, we achieve a bond without the need for corrosive fluxes.
In a high-vacuum environment ( or better), magnesium (Mg) plays a crucial role as a "getter," breaking down the stubborn aluminum oxide layer to allow for perfect wetting.
Key Stages of Production
Achieving a flawless brazed joint requires rigorous control over several stages:
- Preparation & Cleaning: Removing every trace of oil and oxide.
- Precision Stacking: Utilizing custom fixtures to maintain a 0.05–0.15mm capillary gap.
- The Thermal Curve: A multi-stage heating process, from low-temperature degassing to the critical brazing hold at 590–610°C.
> Expert Tip: Even a deviation during the brazing segment can lead to fin collapse or incomplete bonding.
Overcoming Common Defects
From porosity to base material overheating, the challenges in aluminum brazing are numerous. Most of these issues stem from unstable vacuum levels or poor temperature uniformity.
Curious about the specific temperature curves and pressure settings to avoid these defects? [Please visit the link at the end of this article to read the complete and detailed technical guide]
Why SIMUWU Furnaces Make the Difference

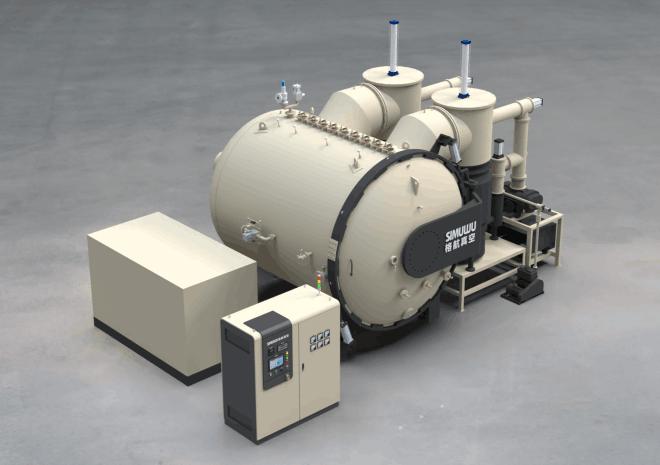

At SIMUWU, we’ve engineered our vacuum aluminum brazing furnaces to tackle these industry pain points head-on:
Magnesium Getter Technology: Our furnaces are equipped to stabilize the vacuum environment and protect heating elements from magnesium vapor corrosion.
Multi-Zone Temperature Control: We achieve a temperature uniformity of ±3℃, ensuring consistent quality across the entire workpiece.
Industrial Reliability: Built with world-class components, our equipment is designed for 24/7 high-efficiency production.
Looking for a complete breakdown of filler metal selection and troubleshooting guides?
Click here to view the original article:
👉 [Introduction to the brazing process for aluminum plate-fin heat exchangers]
