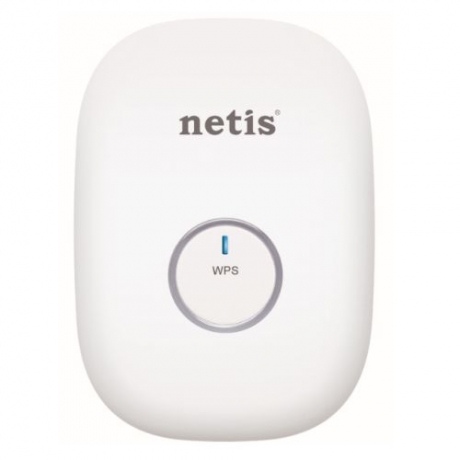

The netis 300Mbps Wireless N Range Extender E1+ is designed to establish a highly efficient mobile office or entertainment network with wider coverage. E1+ works as a "Range Extender" in default, which will pick up the wireless signal from your main router and expand it to somewhere that your main router may not reach. Also, E1+ can support Router mode to setup a secured internal network from a DSL or cable modem. With portable design, it's a perfect choice for travellers, students, or anyone else for work or play.

Wireless

Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Signal Rate

Up to 300Mbps

Frequency Range

2.4-2.4835GHz

Transmit Power

20dBm(MAX)

Data Transfer Rates

802.11n:

40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)

801.11g:

(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)

802.11b:

(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

Range Extender, Router

Wireless Security

Support 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES)

Interface

1* 10/100Mbps Ethernet port

Buttons

WPS

Range Extender mode: WPS/Default function

Router mode: Normal Power/High Power/Default function

LED Indicators

Signal

Antenna

2* internal antenna

Power Supply

100-240V AC

Software

Firmware Upgrade, Factory Defaults, Reboot

Certification

FCC, CE

Environment

Operating Temperature: 0C~40C

Storage Temperature: -40C~70C

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package

1* E1+

1* Ethernet Cable

1* Quick Installation Guide
