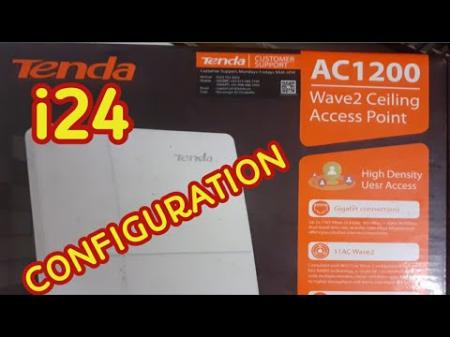

i24 / Wireless AP / AC1200 Wave 2 Gigabit Access Point
i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
Mode
i24
Appearance
Ceiling AP
Dimension
178 mm * 178 mm * 38 mm
Frequency Band
2.4 GHz, 5 GHz
Wireless Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Rate
2.4 GHz data rate:1 - 300 Mbps
5 GHz data rate:6 - 867 Mbps
5 GHz data rate:6 - 867 Mbps
Ethernet Ports
1*10/100/1000 Base-TX port
Button
1*Reset
LED
1*Power
Maximum Power Consumption
Full-load 13.5W
Power supply standard
IEEE 802.3at
Operating Mode
AP, Client+AP
SSID Hidden
Supported
Max. No. of SSID
2.4 GHz: 8
5 GHz: 4
5 GHz: 4
Max. connected clients
2.4 GHz: 128
5 GHz: 128
5 GHz: 128
WEP
Supported
WPA2-PSK
Supported
WPA-PSK
Supported
WPA2
Supported
WPA
Supported
Access Control
MAC address-based
Adjustable Transmission Power
Supported
AP Isolation
Supported
Connected clients control
Supported
RSSI Threshold
Supported
WMM
Supported
VLAN Tagging for SSID
Supported
Antenna gain
4 dBi
Output Power
2.4 GHz MCS8 output power:26 +/- 1.5 dBm
5 GHz MCS8 output power:24 +/- 1.5 dBm
5 GHz MCS8 output power:24 +/- 1.5 dBm
Sensitivity
802.11b RX sensitivity:-93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity:-72 dBm
5 GHz 802.11a RX sensitivity:-93 dBm
5 GHz 802.11n (MCS7) RX sensitivity:-74 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity:-72 dBm
5 GHz 802.11a RX sensitivity:-93 dBm
5 GHz 802.11n (MCS7) RX sensitivity:-74 dBm
LED control
Supported
Diagostic
Ping, Traceroute
Schedule Reboot
Supported
Reboot at specified interval
Supported
Management
Web UI
Syslog
Supported
Firmware Upgrade
Local and AC upgrade
Reboot
Local and AC reboot
Reset
Local and AC reset
Backup Configuration
Supported
Restore Configuration
Supported
Default Settings
Default login IP address:192.168.0.254
Default user name:admin
Default password:admin
Default user name:admin
Default password:admin
Temperature
Operating temperature:-10℃ - 45℃
Storage temperature:-30℃ - 70℃
Storage temperature:-30℃ - 70℃
Humidity
Operating humidity:(10% - 90%) RH, non-condensing
Storage humidity:(10%－90%) RH, non-condensing
Storage humidity:(10%－90%) RH, non-condensing
Certification
CE\FCC\RoHS
